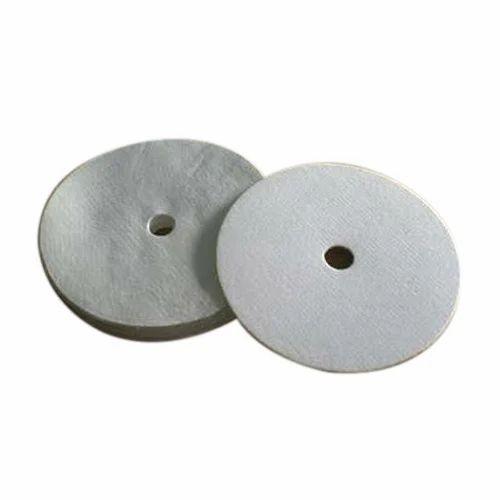

Sparkler Filter Pads
Overview
Sparkler filter pads are specialized depth filtration media used in horizontal plate filters, particularly in Sparkler®-type filter presses. These pads are essential for polishing, clarifying, and removing fine suspended particles from liquids in pharmaceutical, food, cosmetic, chemical, and beverage industries.
At Filtech Textiles, we produce high-performance filter pads compatible with all sparkler filter systems, engineered for high dirt-holding capacity, precise filtration, and long service life.
Design Features
- Shapes & Sizes:
- Standard round discs: 8.5", 12", 14.5", 16.5", 18.5", 25"
- Custom diameters available on demand
- Edge Types:
- Plain, die-cut, stitched or heat-sealed edges
- With or without central hole (depending on plate design)
- Filter Ratings:
- Micron Rating: From 1 µm to 100 µm
- Thickness: 250 GSM to 750 GSM
Types of Filter Media Used in Sparkler Filter Pads
| Material | Media Type | Micron Rating | Advantages | Limitations |
|---|---|---|---|---|
| Cellulose Fiber | Non-Woven (Depth) | 1 – 50 µm | Excellent depth filtration, biodegradable, cost-effective | Not suitable for strong solvents |
| Polypropylene | Woven / Non-Woven | 1 – 200 µm | Chemically inert, good solvent & acid resistance | Limited temp resistance (~90°C) |
| Polyester (PET) | Woven / Non-Woven | 1 – 10 µm | Durable, abrasion-resistant, withstands high temps (~150°C) | Moderate acid resistance |
| Nylon Monofilament | Woven (Surface) | 10 – 150 µm | Smooth surface, easily washable, good mechanical strength | Limited chemical compatibility |
| Glass Fiber | Non-Woven (Depth) | 1 – 5 µm | High-temp stable, fine particulate retention | Brittle, limited reusability |
Applications of Sparkler Filter Pads
Pharmaceuticals: Final filtration of injectables, syrups, APIs
Food & Beverages: Clarification of edible oils, wine, juice, syrups
Cosmetics: Removal of waxes, colorants, and suspended solids
Chemicals: Acid and solvent purification, catalyst recovery
Herbal Extracts: Fine filtration of plant-based and botanical liquids
Dyes & Pigments: Removal of impurities from coloring agents
⭐ Why Choose Filtech Textiles?
- 🧪 Filter pads made from FDA-compliant, pharmaceutical-grade materials
- 📐 Available in standard and custom sizes with exacting tolerances
- 🧵 Precision die-cutting and edge sealing to prevent fiber shedding
- ⚗️ Compatible with organic solvents, alcohols, acids, and alkalies
