Anode Filter Bags
Overview

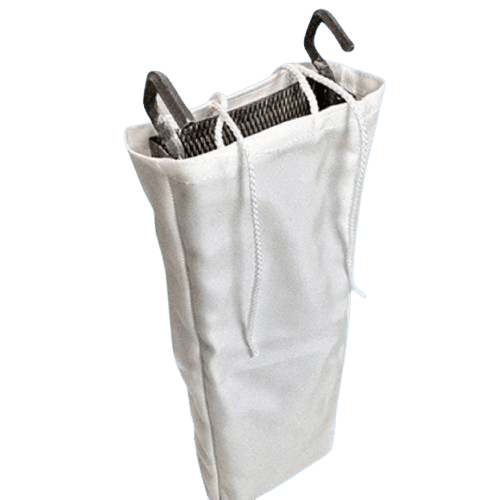

Anode filter bags are specialized filtration sleeves used in electroplating and metal finishing processes to surround anodes and prevent impurities, sludge, and metallic debris from contaminating the plating bath. These bags play a crucial role in maintaining bath purity, ensuring high-quality plated finishes, and prolonging the life of plating solutions.
At Filtech Textiles, we manufacture premium-quality anode filter bags tailored for all types of anodes and plating systems, offering optimal chemical resistance, durability, and micron control.
Construction & Design Options
- Seam: Stitched or Ultrasonically Welded for leak-proof performance
- Top Styles:
- Drawstring (tie-top)
- Elastic (self-locking)
- Flanged ring or snap band (custom)
- Bottoms: Flat or rounded
- Sleeves: Open-ended or sealed as per anode size and configuration
- Micron Ratings: 1 µm, 5 µm, 10 µm, 25 µm
Types of Filter Media Used in Anode Filter Bags
| Material | Micron Rating | Advantages | Limitations |
|---|---|---|---|
| Polypropylene | 1 – 200 µm | Excellent chemical resistance, economical, non-leaching | Limited heat resistance (~90°C) |
| Polyester (PET) | 1 – 150 µm | High strength, abrasion-resistant, better for warmer baths | Moderate chemical resistance |
| Nylon (Polyamide) | 10 – 150 µm | Flexible, reusable, good for fine sludge | Limited acid resistance |
| Cotton | 50 – 150 µm | Natural, biodegradable, traditional choice | Shorter lifespan, absorbs chemicals |
| Nonwoven Felt | 1 – 50 µm | Deep filtration, low-pressure drop | May clog faster than woven bags |
Applications of Anode Filter Bags
Electroplating: Copper, nickel, zinc, chrome, silver, gold plating
Metal Finishing: Decorative and functional metal coating
Automotive: Plating of parts, tools, fasteners
Aerospace: High-precision plating applications
Electronics: PCB and component plating
Jewelry: Precious metal deposition
Battery Manufacturing: Electrochemical anode containment
⭐ Why Choose Filtech Textiles?
- 🧵 Custom fabrication to fit any anode size or shape
- 🔬 Wide range of micron ratings and media types
- 💪 High durability for extended use and consistent performance
- ⚙️ Expert support for your electroplating filtration needs
- 🌍 Serving OEMs, job shops, and end users across industries
