Pleated Dust Collector Bags
Maximize Filtration Area with Compact, Efficient Pleated Filter Elements
Overview

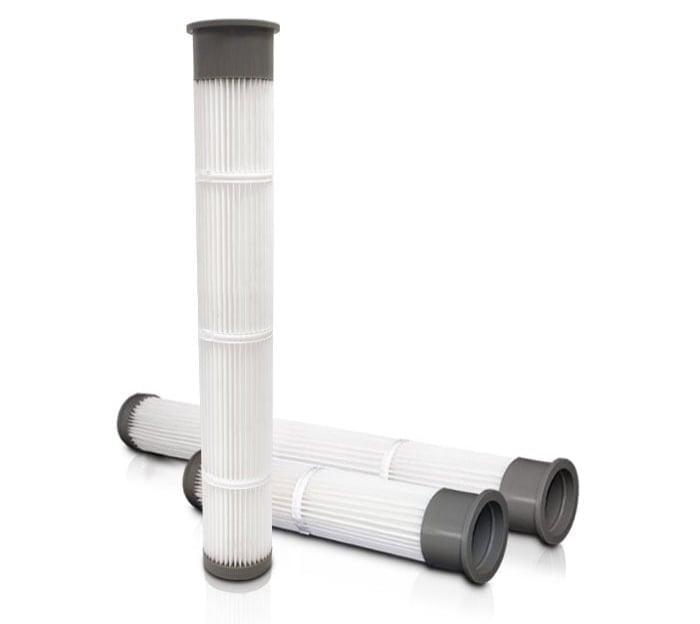

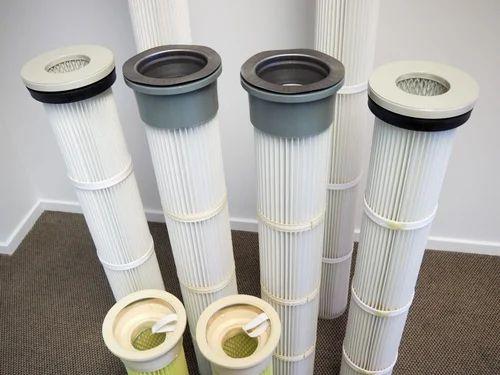

Pleated dust collector bags are advanced filtration elements designed to replace traditional cylindrical bags and cages. Their pleated surface greatly increases the filtration area within the same space, resulting in improved dust holding capacity and airflow efficiency. Constructed from synthetic or cellulose blend filter media, these bags are used in systems demanding high performance, space savings, and reduced energy consumption.
Key Features
- Up to 2-3 times more filtration area compared to standard bags
- Integrated design eliminates need for separate cages
- Polyester, cellulose, or nanofiber blends with optional surface treatments
- Available with molded end caps (PU, metal, or plastic)
- Supports both top and bottom load designs
Filter Bag Specification for Pleated Dust Collector Bags
| Parameter | Range / Details |
|---|---|
| Filter Lengths | 500 mm, 1000 mm, 1400 mm, 2000 mm |
| Outer Diameters | 115 mm, 145 mm, 160 mm, 180 mm |
| End Caps | PU (Polyurethane), GI, SS, or molded plastic |
| Filter Media | Polyester, Cellulose-Polyester Blend, PPS, Pleatable Nomex |
| Surface Treatments | Antistatic, Water & Oil Repellent, PTFE Coated |
| Temperature Range | Up to 135°C (standard); higher with special media |
Applications of Pleated Dust Collector Bags
- Powder coating and painting booths
- Cement and minerals processing
- Metalworking and shot blasting operations
- Pharmaceutical and chemical industries
- Wood and furniture manufacturing
⭐ Why Choose Filtech Textiles?
- Wide range of pleat counts and diameters for custom applications
- Precision end cap sealing and uniform pleat spacing
- Reliable for high-volume and fine dust applications
- Customizable for pulse jet, reverse air, or static systems
