Nutsche Filter Bags
Overview
Nutsche filter bags are specialized filter media used in Nutsche filtration systems—a type of pressure or vacuum filtration widely adopted in pharmaceutical, chemical, and fine-processing industries. These filter bags line the filtration plate or mesh in a Nutsche Filter Dryer (NFD) or Agitated Nutsche Filter (ANF) to separate solids from liquids with high efficiency and precision.
At Filtech Textiles, we offer high-quality, customizable Nutsche filter bags engineered to withstand demanding operating conditions, chemical exposures, and stringent purity requirements.
Design Features

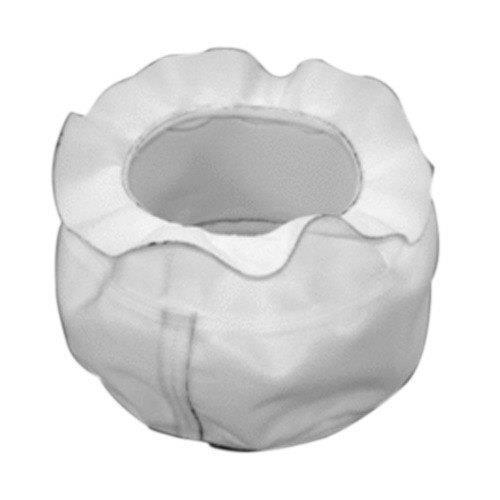

- Shapes: Disc-shaped, sleeve-type, cylindrical or custom geometries
- Mounting Options: Snap rings, drawstrings, elastics, stitched or welded rims
- Seam Types:: Single or double stitched
- Surface Treatment: Glazed, singed, calendared, PTFE coated
- Compliance: Available in FDA-grade and solvent-safe materials
Types of Filter Media Used in Nutsche Bags
| Material | Micron Rating | Advantages | Limitations |
|---|---|---|---|
| Polypropylene | 1 – 200 µm | Strong chemical resistance, economical | Lower temperature resistance (~90°C) |
| Polyester (PET) | 1 – 150 µm | High mechanical strength, temp resistance (~150°C) | Moderate acid resistance |
| Nylon (Monofilament) | 10 – 300 µm | Smooth surface, reusable, good drainage | Limited acid resistance |
| PTFE (Teflon) | 1 – 50 µm | Chemically inert, withstands extreme temps (up to 260°C) | Very high cost |
| Antistatic Media | Varies | Safe for solvent handling in explosive environments | Custom order only |
Applications of Nutsche Bags
Pharmaceuticals: API isolation, crystal separation, solvent recovery
Chemicals: Fine chemical filtration, catalyst recovery, slurry drying
Food Processing: Flavor compounds, botanical extraction
Agrochemicals: Formulation filtration, pesticide ingredients
Dyes & Pigments: Colorant separation, slurry clarification
Cosmetics: Herbal extract processing, emulsions
Centrifuge Bag vs. Nutsche Bag: Key Differences
| Parameter | Centrifuge Bag | Nutsche Bag |
|---|---|---|
| Application | Used in rotating centrifuges for dynamic separation | Used in static/vacuum or pressure filtration vessels |
| Motion | Operates under high-speed spinning | Operates under vacuum/pressure, sometimes with agitation |
| Shape | Cylindrical or conical bags | Flat disc or tubular/sleeve configurations |
| Cake Discharge | Often manual or bottom-discharged | Cake removed via side discharge or in-place drying |
| Volume Capacity | Typically lower than Nutsche | Higher—used in large-scale operations |
| Chemical Compatibility | Moderate to high, depending on fabric | Very high—used with aggressive solvents and APIs |
| Precision | Moderate; mostly mechanical separation | High precision; suitable for pharma-grade filtration |
| Typical Use Cases | Sugar, salts, minerals, bulk chemicals | Fine chemicals, pharma APIs, sensitive compounds |
⭐ Why Choose Filtech Textiles?
- 🧪 Media tested for solvent compatibility, chemical resistance, and micron accuracy
- 🧵 Leak-proof construction with FDA-compliant stitching
- 🛡️ Available with antistatic, hydrophobic, or PTFE-coated finishes
- 📐 Customizable for OEM units or unique vessel geometries
- ⚙️ Rapid delivery for standard and made-to-order designs
